Αρχική Σελίδα /Προϊόντα/Αισθητήρας οξυγόνου αυτοκινήτου/High Performance Wide Band O2 Oxygen Sensor For Vehicle Exhaust System LSU4.2

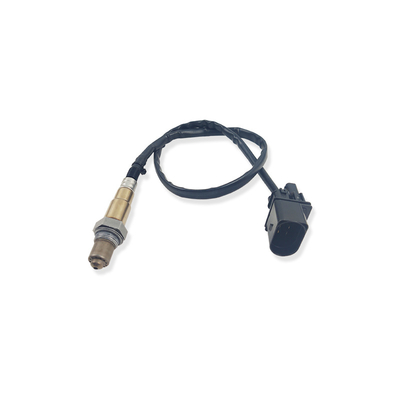

High Performance Wide Band O2 Oxygen Sensor For Vehicle Exhaust System LSU4.2

1 piece
MOQ
$23.00(1 - 99 pieces) $19.00(100 - 499 pieces) $15.00(>=500 pieces)
τιμή
High Performance Wide Band O2 Oxygen Sensor For Vehicle Exhaust System LSU4.2
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
OE NO.: /
Warranty: 12 Months
Type: Oxygen Sensor
Model Number: LSU4.2
Car Make: /
Operating voltage: 9V
Heater resistance: 3.2±0.5Ω
Heater power steady state: 10 W
Operating temperature: 150~930°C
Oxygen concentration: 0-21%
Light-off time: <15S
Storage temperature: -40°C~+90°C
Βασικές πληροφορίες
Model Number: LSU4.2
Πληρωμής & Αποστολής Όροι
Supply Ability: 1000 Piece/Pieces per Month
Περιγραφή προϊόντων
Product Description


  • Product performance description


The wide band oxygen sensor LSU is a planar ZrO2 dual cell limiting current sensor with an integrated heater. It is used to measure the oxygen content and the λ-value of exhaust gases in automotive engines (gasoline and diesel). Its monotonic output signal in the range of λ=0.65 to air makes the LSU capable of being used as an universal sensor for λ=1 measurement as well as for other λ ranges.
Specifications
Heater resistance
3.2±0.5Ω
Operating voltage
9V
Heater power steady state
10 W
Measurement range
λ=0.65-∞
Oxygen concentration
0-21%
Accuracy
when λ=0.8, 0.8±0.03;
when λ=1, 1.016±0.007;
when λ=1.7, 1.7±0.05;
Operating temperature / Exhaust gas temperature
150~930°C
Storage temperature
-40°C~+90°C
Light-off time
<15S
Product Features
1.Short light-off time
2.Low heating power
3.Less dependent on exhaust temperature (conducive to the stability in different operating situations)
4.Double protection on the top of tube to confront impact
5.Good aging resistance
6.Anti-coating and anti-poisoning
7.Compact structure (high anti-vibration level)
8.Longer duration
9.Independent R&D and production for ceramic/zirconia oxide ZrO2 chips
10.Covering multiple series of car models
11.Strong ODM/OEM capacity, cover multiple series of car models
Details Images
Models of Oxygen Sensor Available
Product Applications

    • Petrol Vehicle Emission Monitoring

Cubic automotive oxygen sensors use ceramic sensitive components to monitor automobile exhaust oxygen content in the electronic fuel injection system, and convert the oxygen content into an electrical signal that is transmitted to the ECU, which allows the engine to achieve the target of excess air factor (λ= 1) in a closed-loop; Ensure the maximum conversion efficiency for hydrocarbons (HC), carbon monoxide (CO) and nitrogen oxides (NOx) in the exhaust, and maximum conversion and purification of emission pollutants.

  • Diesel Vehicle Emission Monitoring

Cubic nitrogen and oxygen sensor is used to detect the content of nitrogen oxides (NOx) in engine exhaust. It is a gas sensor made of solid electrolyte ceramics and nitrogen oxide sensitive electrode materials, using semiconductor technology to detect nitrogen oxides. The nano-composite structure on the surface of the electrode achieves extremely highselectivity of nitrogen oxide molecules. It can be used in the closed-loopcontrol of nitrogen oxides in the SCR system of diesel engines, or in theon-board diagnostics (OBD) of gasoline and diesel engines.

    • Motorcycle Emission Monitoring

The motorcycle oxygen sensor monitors whether the oxygen content in the engine exhaust is excessive in real time, and converts the detected concentration into a voltage signal, then transmits it to the engine ECU to ensure that the three-way catalytic converter has the maximum conversion efficiency for the three pollutants of hydrocarbons (HC), carbon monoxide (CO) and nitrogen oxides (NOX) in exhaust gas, which can transform and purify the emission pollutants to the greatest extent, and realize the closed-loop control of the engine.
Related Products

Wide Band Oxygen Sensor-LSU4.9

NOx Sensor

LSU ADV Oxygen Sensor

Packing&Shipping
Company Introduction
Cubic Sensor and Instrument Co., Ltd. (hereinafter referred to as "Cubic") is a publicly listed company in SSE STAR Market (stock code:688665), specializing in smart gas sensors and superior gas analyzers. Set up in 2003, situated at “Optics Valley” of Wuhan, China, Cubic has established gas sensing technology platforms including optical technologies (NDIR, Ultraviolet, Light Scattering, Laser Raman), ultrasonic technology, MEMS metal oxide semiconductor (MOX) technology, electrochemical technology, ceramic thick-film technology based high temperature solid electrolyte technology and so on. At present, Cubic has obtained more than 100 patents home and aboard, with abundant products widely used in various fields of air quality, environmental monitoring, industrial processes, industrial safety monitoring, healthcare, smart metering and so on.
